1. 📥 Install the ZLED Bit Editor App
Search ZLED Bit Editor on the App Store (iOS) or Google Play (Android), or use the direct links below.
⚠️ Make sure to grant all permissions when prompted. The app will not function correctly without them.
2. 🔌 Power On the Lights
Turn on your running lights , this powers the controller and activates Bluetooth mode.
3. 📡 Pair with Your Device
-
Launch the ZLED Bit Editor app.
-

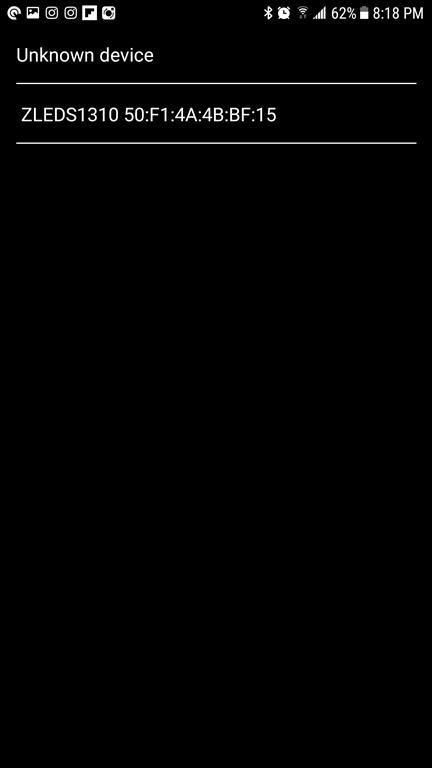

On first launch, the app will begin scanning for nearby Bluetooth devices.
-
Select the device labeled ZLEDSxxxx.
4. 🔐 Set Your Access PIN
-

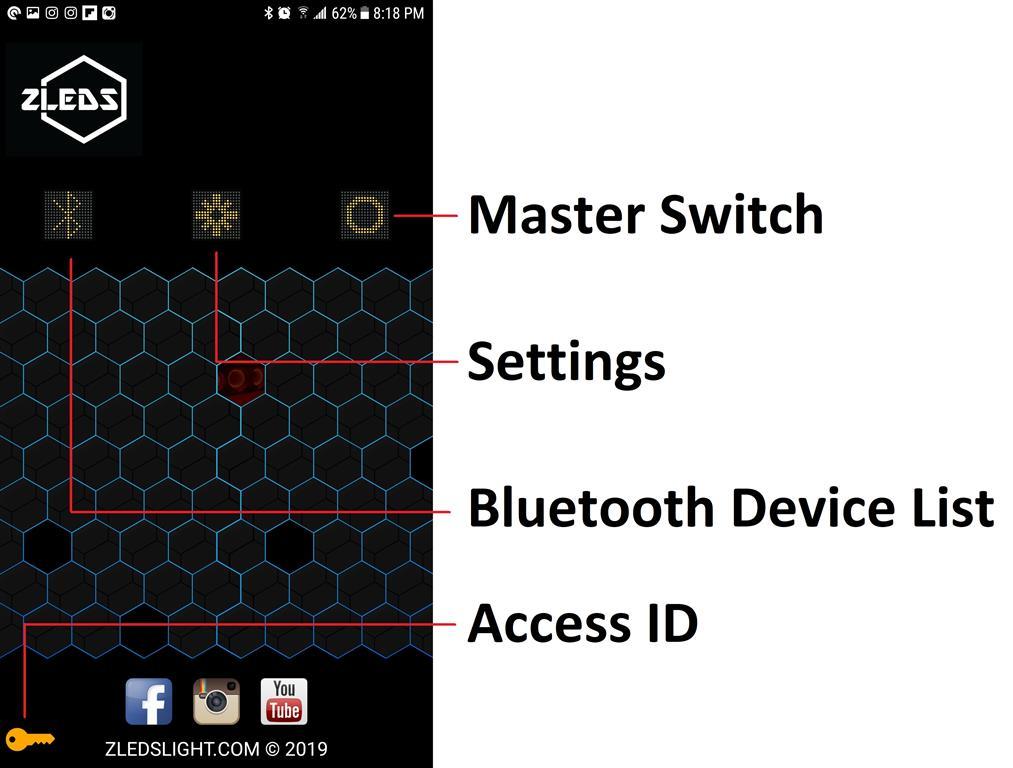

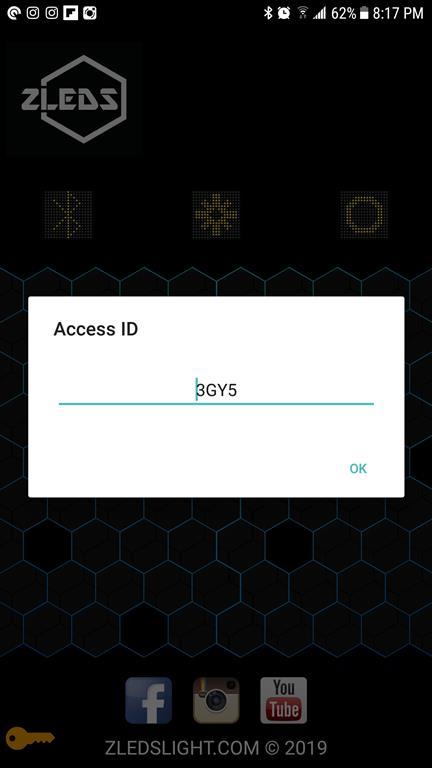

Open the Menu and choose Access ID.
-
Set your security PIN. Once accepted, the Editor Tabs (1–5) will become available.
-
If the tabs do not appear:
-
Turn off the running lights for a few seconds, then power them back on.
-
Restart the app completely and retry the pairing process.
-
5. ☁️ Sync the Default Presets
-
Go to Menu > Sync Presets.
-
This will download default presets from our server to your phone.
-
You can now upload and customize them through the editor tabs.
🧭 Tab Function: In most cases, each tab controls the following
| Tab | Function |
|---|---|
| 1 | Running Lights |
| 2 | Brake Lights |
| 3 | Turn Signals |
| 4 | Reverse Lights |
| 5 | Strobe/Showcase |
-
Use the Left/Right Arrows to browse through saved presets.
-
Use the Up Arrow Icon to upload the selected preset to your lights.
🧙♂️ MagicHat Controls (Advanced)
-
Use switches 1–5 to trigger each function manually.
-
The MagicHat tab lets you adjust internal timing effects in real time.
-
These settings are temporary and will reset when power is turned off.
If your firmware version is 1.89 or higher, these sliders allow you to cycle through different memory slots for additional configurations.
